K002963
Caliper - Rationalized
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

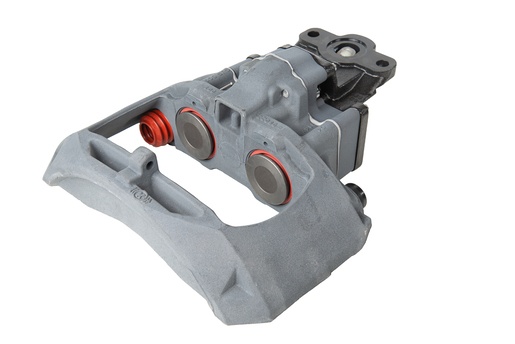

Enhance the braking efficiency of your commercial vehicle with the Bendix Rationalized Caliper, designed for air disc brake systems. This caliper boasts a radial brake type and a fixed bearing cover made of steel, ensuring long-lasting durability and strength. With dimensions that allow it to fit 22.5-inch wheels, it is a perfect choice for heavy-duty applications. Weighing approximately 37 kg, its solid construction provides excellent stopping power while minimizing weight for better fuel efficiency. The precise engineering of this caliper guarantees smooth and responsive braking, enhancing overall vehicle safety. For the best selection of genuine Bendix OEM parts, rely on Source One Parts Center, where quality and reliability are our top priorities.
SPECIFICATIONS
Angle of Actuator centre line to axis of axle [deg.]
+93
VMRS
013-013-001: Caliper - Air Disc Brake
Height
200.0 mm (7.87 in)
Title Extension
22,5"
To suit wheel size
22,5"
Width
400.0 mm (15.75 in)
Length
450.0 mm (17.72 in)
Harmonized System (HS) Code
870830
Country of Origin
Czech Republic
Has opposite handed version
K002962
Brake type
Radial
Fixed Bearing Cover
Steel Cap
Weight
81.57 lb
