K161888OR

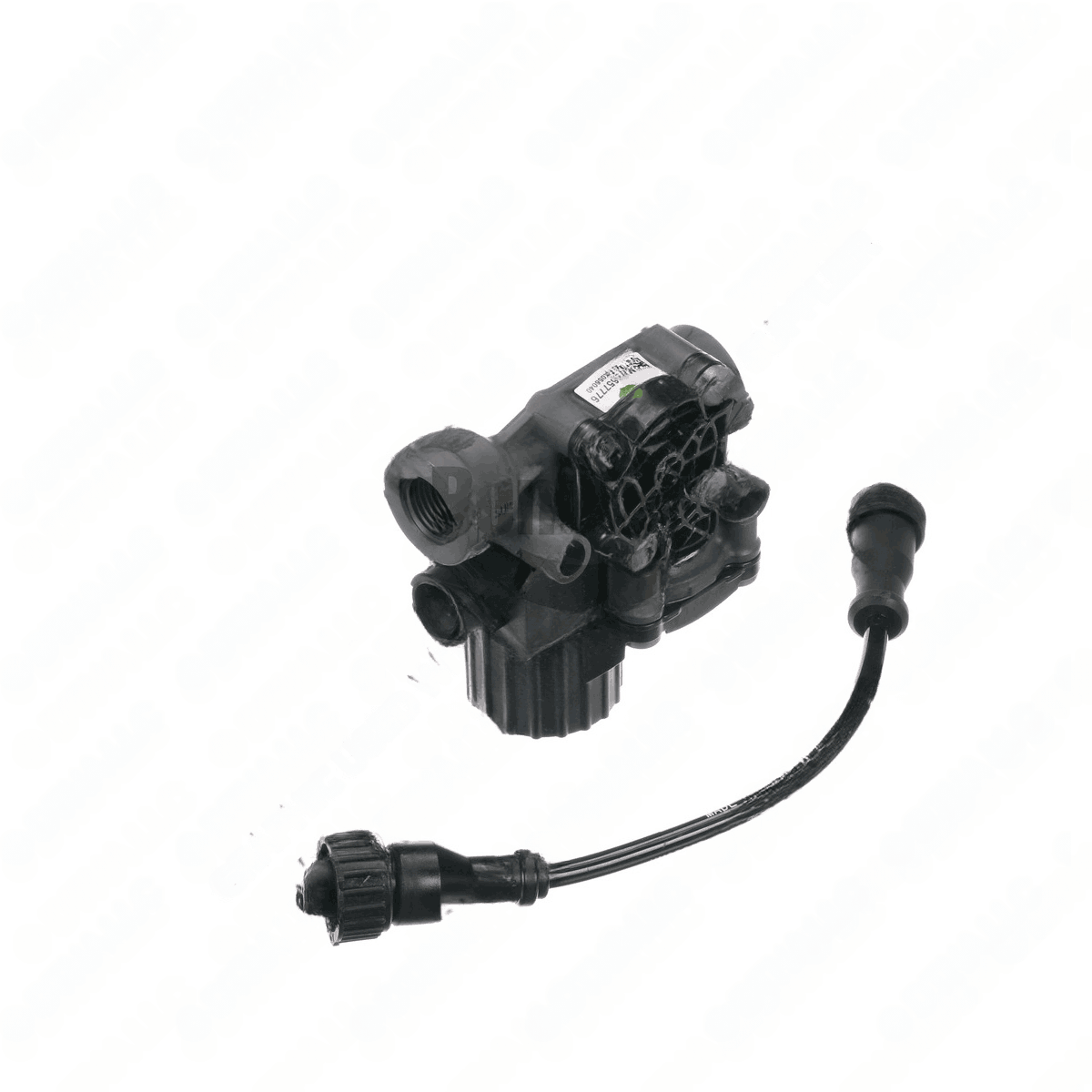

Modulator Valve ABS
Bendix

A three-way modulator valve designed for an anti-lock braking system, delivering high-flow control and precise pressure modulation to wheel brakes during ABS operation. The unit features a duty cycle of 15/300 seconds and a maximum solenoid on time of 150 seconds, enabling rapid response to wheel slip without overloading the system. Its compact dimensions are 61 mm wide, 105 mm high, and 110 mm long, with inlet and delivery ports sized at 1/2 NPT and 1/2-14 NPT respectively, and a 0.34 inch mounting dimension. Electrical demand is 12 V with a 4.60 A draw. The maximum operating pressure is 150 psi, and the operating temperature range extends from -40 to 185 F, with a minimum of -40 F. Construction uses a 3 Way Circular DIN connector and a dust shield on the exhaust port for durability in harsh environments. This modulator is identified under VMRS 013-011-071 and category 41354, signifying its role in the ABS control manifold and overall vehicle braking performance. It is compatible with Bendix ABS systems and other components that rely on precise, reliable pressure modulation for wheel-end stability.
