K1289160R

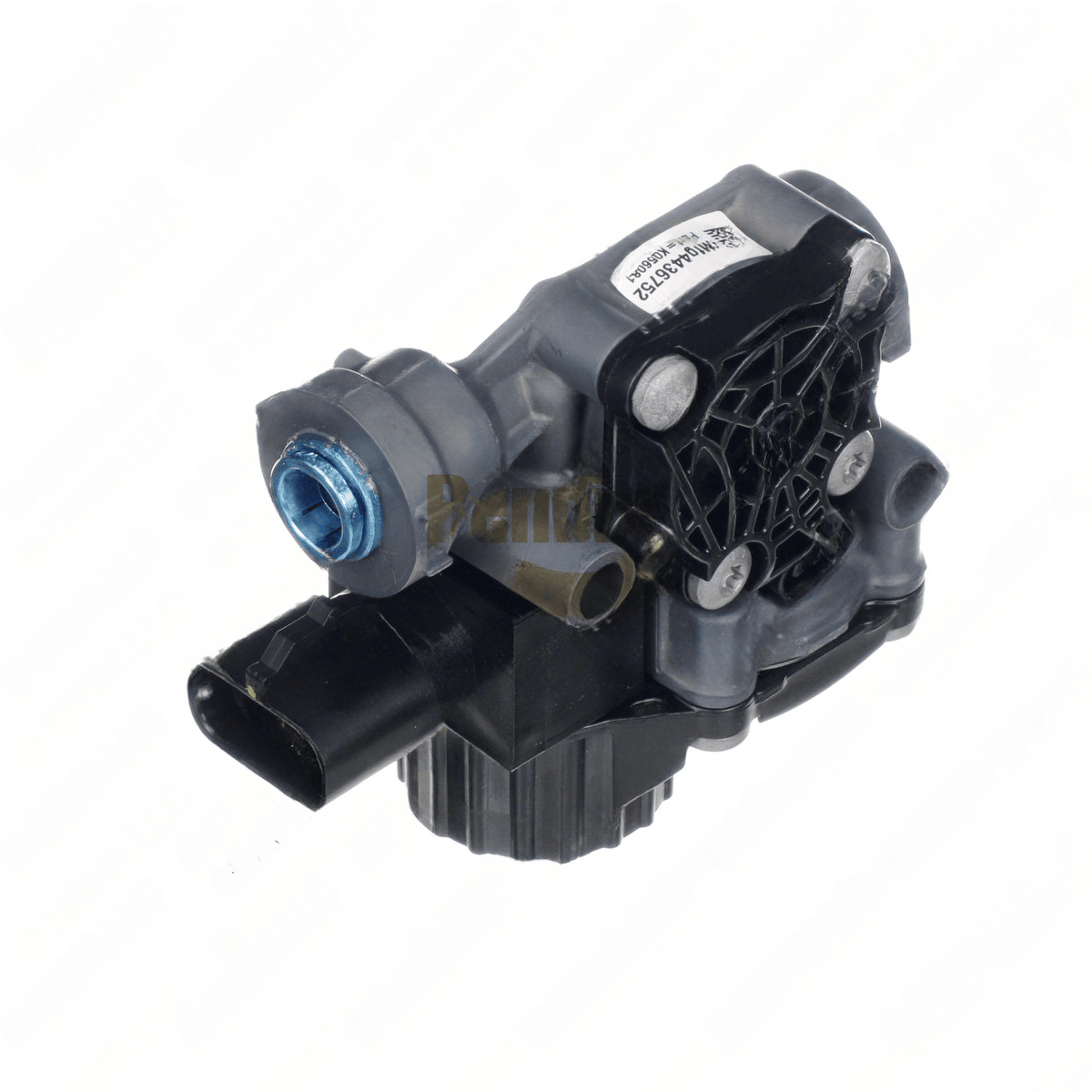

ABS Modulator Valve
Bendix

Three-way modulator valve for ABS systems featuring quick-release characteristics and a sealed Metri-Pack 280 connector, designed for reliable performance in heavy-truck braking applications. It shares the same fundamental dimensions and port configurations as other ABS modulator variants, including 12 V operation, 4.6 A draw, 61 mm width, 105 mm height, 110 mm length, and a 0.34 in mounting dimension, with 1/2-PTC supply and delivery ports and 1/2-PTC for the main flow lines. It includes 1/4-18 NPT balance and control ports and 3/8-18 NPT delivery ports, plus 1/4-18 NPT park control port, providing flexible routing in modern, compact valve cavities. Maximum operating pressure remains 150 psi, with a -40 to +185 Deg.F operating range. Category 41354 places it in the ABS modulator family, supporting cross-references to equivalent units for replacements. When servicing, technicians should confirm the Metri-Pack 280 sealed connector integrity and match port sizes to the vehicle’s brake-control system to ensure proper modulation and braking response.
