2613253C91
DIFFERENTIAL, CARRIER R/R 2.64
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$3,099.95
$3,719.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
DIFFERENTIAL CARRIER R/R 2.64

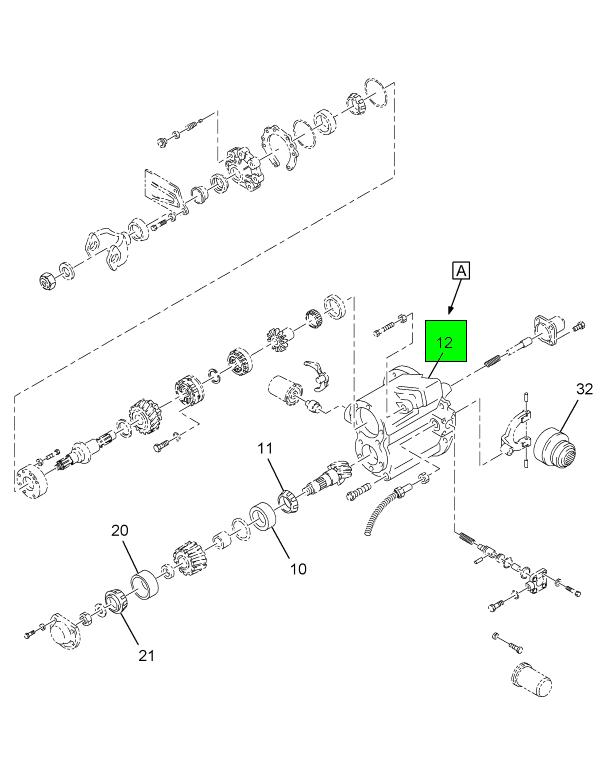

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| CAP SCREW | 4 | 41X1669 |
| SCREW, THRUST DRIVE GEAR | 1 | 2508423C1 |
| BLOCK-THRUST | 1 | 2297P8336 |
| NUT, SPECIAL THRUST SCREW | 1 | 40X1016 |
| CONE AND ROLLERS TA | 1 | H715334 |
| CONE-TAPER-BEARING | 2 | 594A |
| SEAL, PINION OIL | 1 | 2590277C1 |
| SPACER, PINION BEARING INNER | 1 | 2613561C1 |
| BEARING, CUP PINION | 1 | FP72487 |
| CONE-TAPER-BEARING | 1 | 72212C |
| CUP, BEARING PINION | 1 | H715311 |
| ASSEMBLY CARRIER AND CAP | 1 | 2613559C1 |
| RING LOCK DIFFERENTIAL ADJUSTER | 2 | 2613563C1 |
| END, TANDEM FORWARD R- WHEEL 2.10-41 SPLINE 247-264 RATIO LESS DCDL | 1 | 2613391C1 |
| GEAR SET DIFFERENTIAL R/R 2.64 AMB 14X | 1 | 2613294C91 |
| RCKWLQS | 2 | 592A |
| BEARING (CONE), DIFFERENTIAL | 2 | 2613564C1 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
