2597636C91

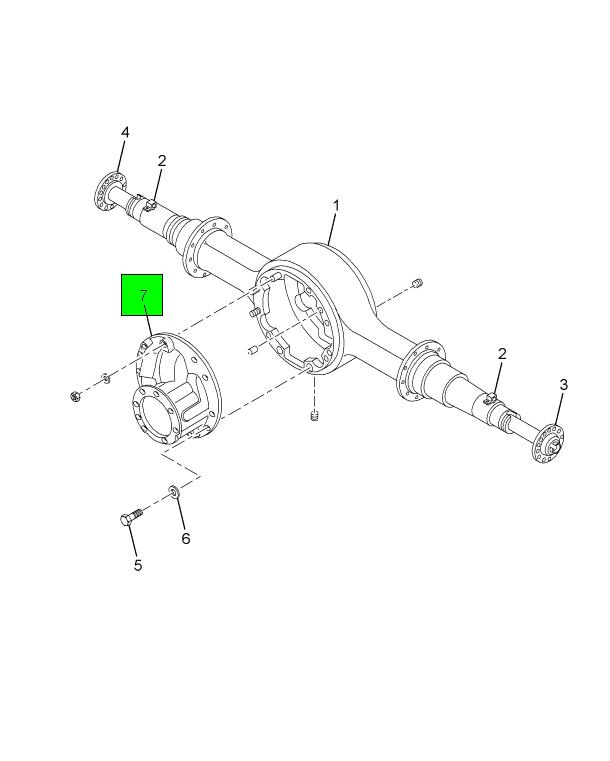

DIFFERENTIAL ASSEMBLY REAR /REAR
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$4,699.95
$5,639.94
This is an oversize product. Additional shipping fees may apply.
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
DIFFERENTIAL ASSEMBLY REAR /REAR
Weight
415.87 lbs
BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| CARRIER, DIFFERENTIAL W/BEARING CAPS | 1 | 1696253C91 |
| WASHER, FLAT CAP BOLT CARRIER BEARING | 4 | 1653989C1 |
| BEARING, CONE | 1 | TMHM813843 |
| BOLT, ADJUSTING LOCK M8 X 20 | 4 | 1691633C1 |
| WASHER, FLAT | 8 | 2500348C1 |
| BOLT 12 MM X 45 MM | 8 | 1697666C1 |
| BEARING, ASSEMBLY REAR PIN 14051 | 1 | 1681803C91 |
| RING, SNAP PINION REAR | 1 | 1681781C1 |
| BOLT, GEAR TO CASE M16 X 65 MM | 12 | 1696226C1 |
| WASHER, BOLT CARRIER TO HOUSING | 12 | 226846R1 |
| NUT, HEXAGON LOCK METRIC | 12 | 1691622C1 |
| GEAR SET, RING AND PINION DIFFERENTIAL 4.89:1 | 1 | 1681816C91 |
| WASHER, FLAT PINION SHAFT WITH NUT 3" O.D. X 1.78" I.D. X .19" THICK | 1 | 264663C1 |
| CARRIER, DIFFERENTIAL PINION GEAR W/CUPS | 1 | 1656924C91 |
| NUT, HEXAGON LOCK PINION | 1 | 1685173C1 |
| BOLT, METRIC M16 X 110 MM | 12 | 1670306C1 |
| WASHER, THRUST SIDE GEAR | 2 | 1653954C1 |
| WASHER, THRUST PINION GEAR | 4 | 1653953C1 |
| BEARING, CONE | 1 | TM594A |
| ADJUSTER DIFFERENTIAL BEARING LEFT /RIGHT 14051 | 1 | 1681827C1 |
| BEARING, CONE | 2 | FP52400 |
| CUP, BEARING | 2 | FP52618 |
| ADJUSTER DIFFERENTIAL BEARING RIGHT | 1 | 1685506C1 |
| PIN, DOWEL | 1 | 1670274C1 |
| PIN, COTTER DIFFERENTIAL BEARING ADJUSTER LOCK | 1 | 683774R1 |
| YOKE, SHIFT | 1 | 1696230C1 |
| COLLAR, SHIFT CLUTCH 46 SPLINE | 1 | 1685507C1 |
| SHAFT, SHIFT FORK LOCK | 1 | 2603550C91 |
| SHAFT, SHIFT FORK LOCK | 1 | 1696232C1 |
| SPRING, SHIFT FORK | 1 | 1696233C1 |
| O-RING AIR CYLINDER | 1 | 1696234C1 |
| SEAL, SHIFT MOTOR TO CARRIER | 1 | 1696235C1 |
| BOLT, SHIFT CYLINDER | 1 | 1696236C1 |
| SEAL, OIL PINION | 1 | 2590713C1 |
| CUP, BEARING | 1 | TM592A |
| CASE, DIFFERENTIAL 4.89-7.17 RATIO | 1 | 1696869C91 |
| CYLINDER, AIR INTERMEDIATE AXLE DIFFERENTIAL SHIFT | 1 | 1696245C91 |
| S PIN, DOWEL BEARING CAP | 4 | 73311R1 |
| BEARING CONE INNER (DRIVE) | 1 | 2603149C1 |
| SET, BEARING SPACER DIFFERENTIAL PINION GEAR | 1 | 1694579C91 |
| GEAR SET, SIDE AND PINION DIFFERENTIAL | 1 | 1653986C91 |
| KIT, BOLTS AND SPACERS | 1 | 1698730C91 |
| KIT, DIFFERENTIAL SWITCH AND CLIP | 1 | 2502117C91 |
| KIT, BOLTS AND SPACERS | 1 | 2592685C91 |
| KIT, DIFFERENTIAL SHIM | 1 | 1694578C91 |
CROSS REFERENCES
- MERITOR A743200T1892489
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
