2597635C91

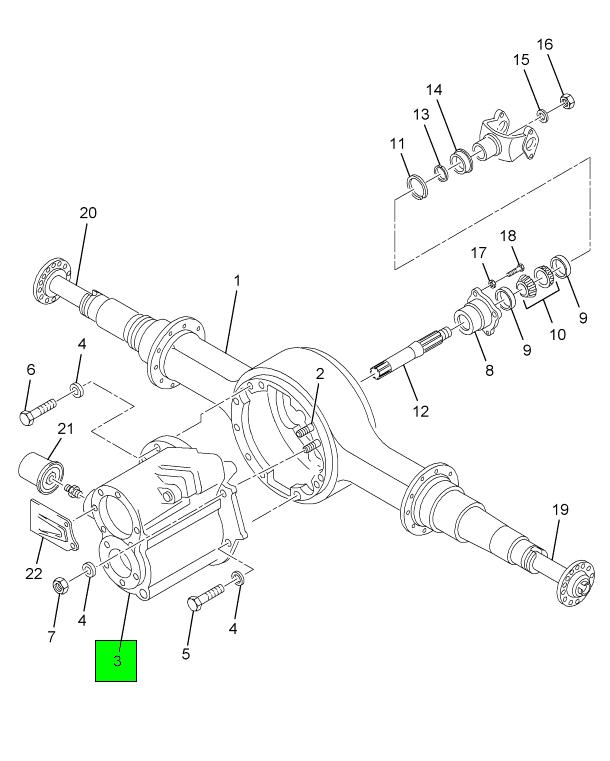

DIFFERENTIAL ASSEMBLY
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$5,999.95
$7,199.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
DIFFERENTIAL,ASM F/R 14HRV 4.8
BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| CARRIER, DIFFERENTIAL W/BEARING CAPS | 1 | 1696244C91 |
| CUP, BEARING | 1 | TMJLM714110 |
| ADAPTER LUBE FILTER | 1 | 1670526C1 |
| SCREEN, OIL FILTER | 1 | 1670482C1 |
| ELEMENT, OIL FILTER AXLE REAR | 1 | 1685141C1 |
| SHIELD, OIL FILTER DIFFERENTIAL | 1 | 1668809C1 |
| CUP, BEARING | 1 | FP65500 |
| BEARING, CONE PINION | 1 | FPH715343 |
| SPACER, PINION BEARING | 1 | 1670273C1 |
| PIN, DOWEL | 1 | 1670274C1 |
| PIN, COTTER DIFFERENTIAL BEARING ADJUSTER LOCK | 1 | 683774R1 |
| CASE, DIFFERENTIAL 4.89-7.17 RATIO | 1 | 1681806C91 |
| WASHER, FLAT CAP BOLT CARRIER BEARING | 4 | 1653989C1 |
| BEARING, CONE | 1 | FP65237 |
| WASHER, BEARING DIFFERENTIAL PINION GEAR | 1 | 1670271C1 |
| NUT, MOUNTING COMPANION FLANGE | 1 | 1670303C1 |
| BOLT, GEAR TO CASE M16 X 65 MM | 12 | 1696226C1 |
| WASHER, BOLT CARRIER TO HOUSING | 12 | 226846R1 |
| NUT, HEXAGON LOCK METRIC | 12 | 1691622C1 |
| GEAR SET, RING AND PINION DIFFERENTIAL 4.89:1 | 1 | 1670238C91 |
| BOLT, ADJUSTING LOCK M8 X 20 | 4 | 1691633C1 |
| BOLT, METRIC M16 X 110 MM | 12 | 1670306C1 |
| WASHER, THRUST SIDE GEAR | 2 | 1653954C1 |
| WASHER, THRUST PINION GEAR | 4 | 1653953C1 |
| BEARING, CONE | 1 | FP52400 |
| BEARING, CUP | 1 | SKF52618 |
| ADJUSTER DIFFERENTIAL BEARING RIGHT | 1 | 1685506C1 |
| BEARING, CONE | 1 | TM594A |
| CUP, BEARING | 1 | TM592A |
| ADJUSTER DIFFERENTIAL BEARING LEFT /RIGHT 14051 | 1 | 1681827C1 |
| BEARING, CONE | 1 | FPJLM714149 |
| BEARING, CONE | 1 | 529452R91 |
| SHAFT, INPUT POWER DIVIDER LOCK | 1 | 1691801C91 |
| WASHER, PINION THRUST HELICAL | 1 | 2594597C1 |
| WASHER, THRUST | 4 | 588968C1 |
| BOLT, INTERAXLE DIFFERENTIAL M10 X 45 MM | 8 | 1696237C1 |
| WASHER, FLAT M10 | 8 | 1658423C1 |
| RING, SNAP | 1 | 1670296C1 |
| SEAL, OIL INPUT SHAFT | 1 | 2590276C1 |
| CARRIER, DIFFERENTIAL INPUT SHAFT | 1 | 1685727C91 |
| BEARING, CUP OUTER PINION | 1 | FPHM813810 |
| BEARING, CUP OUTER PINION | 1 | 152454R1 |
| BEARING, CONE | 1 | TMHM813843 |
| RING, O | 2 | 2599737C1 |
| WASHER, FLAT CARRIER TO HOUSING | 7 | 213524R1 |
| BOLT 12 MM X 45 MM | 7 | 1697666C1 |
| WASHER, FLAT PINION SHAFT WITH NUT 3" O.D. X 1.78" I.D. X .19" THICK | 1 | 264663C1 |
| NUT, HEXAGON LOCK PINION | 1 | 1685173C1 |
| FORK, AXLE SHIFT | 1 | 3296B1328 |
| VALVE, RELIEF | 1 | 1685730C1 |
| SPRING, INPUT SHAFT THRUST | 1 | 1670524C1 |
| SPRING, PUSH ROD BRAKE CHAMBER | 1 | 2258U411 |
| CUP, BEARING PINION | 1 | FPH715311 |
| S PIN, DOWEL BEARING CAP | 4 | 73311R1 |
| SET, BEARING SPACER DIFFERENTIAL PINION GEAR | 1 | 1694540C91 |
| SET, SHIM PINION BEARING | 1 | 1694541C91 |
| PLUG, CARRIER DIFFERENTIAL | 1 | 1696249C1 |
| BOLT, METRIC M6 X 12 | 1 | 1696022C1 |
| BOLT, DIFFERENTIAL CARRIER TO HOUSING SHORT | 7 | 1695182C1 |
| BOLT, CARRIER TO DIFFERENTIAL HOUSING | 3 | 1695839C1 |
| NUT TYPE 8 5/8" UNF | 2 | 25676R1 |
| NUT, SHIFTER SHAFT POWER DIVIDER LOCK | 1 | 1696227C1 |
| BOLT | 1 | 1670304C1 |
| COVER, BEARING CAGE DRIVE PIN GEAR | 1 | 1670299C1 |
| WASHER, FLAT | 1 | 1696250C1 |
| BOLT, PINION BEARING CAGE M10 X 45MM | 5 | 1696229C1 |
| PUMP, DIFFERENTIAL OIL | 1 | 1691772C1 |
| GEAR SET, SIDE AND PINION DIFFERENTIAL | 1 | 1653986C91 |
| KIT, INTERMEDIATE AXLE DIFFERENTIAL CASE W/COLLAR | 1 | 2506147C91 |
| GEAR SET INTERMEDIATE AXLE DIFFERENTIAL | 1 | 1670301C91 |
| KIT, BOLTS AND SPACERS | 1 | 1698730C91 |
| KIT, BOLTS AND SPACERS | 1 | 2592685C91 |
| KIT, CYLINDER IAD SHIFT | 2 | KIT2825 |
| WASHER, BOLT BEARING CAP | 6 | 483361C1 |
| BOLT, CARRIAGE | 6 | 1670495C1 |
| GEAR, HELICAL DRIVE DIFFERENTIAL | 1 | 1670300C1 |
| PLUG | 1 | 1670503C1 |
| COLLAR, SHIFT CLUTCH 46 SPLINE | 1 | 1685507C1 |
CROSS REFERENCES
- MERITOR A713200V1894489
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
