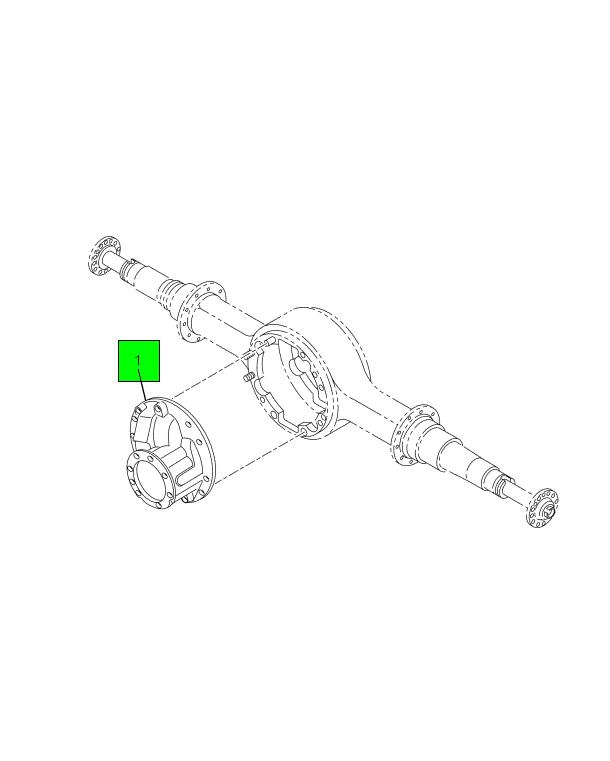

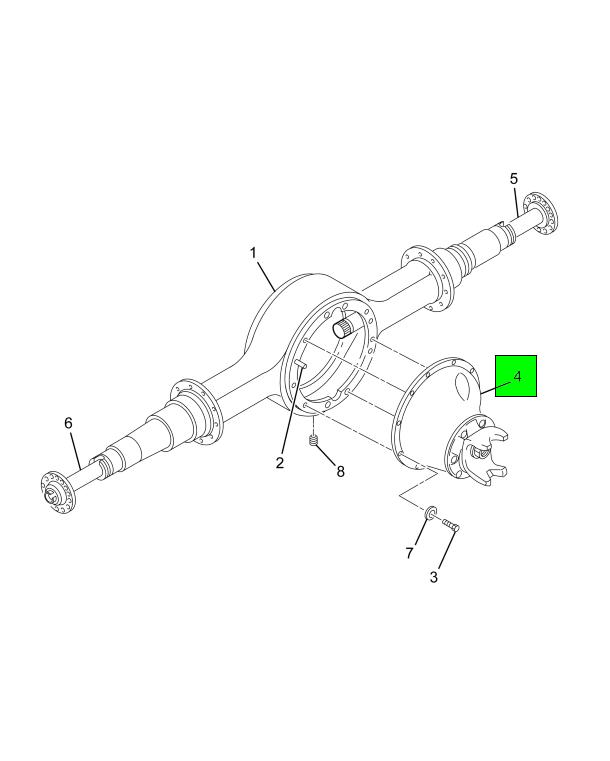

2590888C91
DIFFERENTIAL, REAR 4.33
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$5,199.95
$6,239.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
VMRS
022-003-000
OEM Description
DIFFERENTIAL R/R 4.33 14GRB C
BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| BEARING, CUP PINION | 1 | FP72487 |
| BEARING, CONE PINION | 1 | FP72212C |
| GEAR SET, RING AND PINION DIFFERENTIAL 4.33:1 | 1 | 1694192C91 |
| CARRIER, DIFFERENTIAL W/BEARING CAPS | 1 | 1670359C91 |
| BOLT, DIFFERENTIAL CARRIER BEARING CAP | 4 | 1696376C1 |
| WASHER, FLAT BEARING CAP | 4 | 1670535C1 |
| ADJUSTER DIFFERENTIAL BEARING LEFT AND RIGHT | 2 | 1670522C1 |
| WASHER, PINION SHAFT 2.38" O.D. X 1.53" I.D. X .12" THICK | 1 | 452436C1 |
| PIN, COTTER DIFFERENTIAL BEARING ADJUSTER LOCK | 2 | 683774R1 |
| CUP, BEARING | 2 | TMJM716610 |
| CUP, BEARING | 2 | FPJM716610 |
| BEARING, CONE | 2 | FPJM716649 |
| BOLT | 16 | 1685290C1 |
| WASHER, FLAT CARRIER TO HOUSING | 16 | 213524R1 |
| CASE, DIFFERENTIAL 4.33-7.17 RATIO | 1 | 1670488C91 |
| BOLT, DRIVE GEAR | 12 | 1670534C1 |
| WASHER CARRIER TO HOUSING BOLT | 12 | 449671R1 |
| NUT, HEXAGON LOCK METRIC | 12 | 1691622C1 |
| WASHER, THRUST SIDE GEAR | 2 | 1696379C1 |
| SEAL ASSEMBLY | 1 | A1205Z2730 |
| WASHER, THRUST DIFFERENTIAL SPIDER GEAR | 4 | 72335R1 |
| BEARING, CONE PINION | 1 | FP55206C |
| CUP, BEARING PINION | 1 | FP55437 |
| BOLT 12 MM X 45 MM | 8 | 1697666C1 |
| WASHER, FLAT | 8 | 2500348C1 |
| CARRIER, DIFFERENTIAL PINION GEAR W/CUPS | 1 | 1670483C91 |
| SET, SHIM PINION CAGE | 1 | 1694582C91 |
| SET, SPACER PINION BEARING | 1 | 1694522C91 |
| GEAR SET, DIFFERENTIAL SIDE AND PIN | 1 | 1696416C91 |
| BEARING, CUP DIFFERENTIAL SIDE | 1 | 2504871C1 |
CROSS REFERENCES
- MERITOR B43200L1676433
- MERITOR B43200L1676433
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
